These are instructions on how to jailbreak your iPhone 3GS on the 5.0b4 firmware using RedSn0w for Windows. Since iOS 5.0 has not yet been released these are instructions for developers only. This procedure will cause you to upgrade your baseband potentially ruining your chances for an unlock, it will not hacktivate so you must have your UDID registered with a developer, and it is tethered.
If you want to jailbreak a lower firmware version you can find the appropriate tutorial here.
Create a folder on your desktop called Pwnage
Download RedSn0w from here and place it in the Pwnage folder. Likewise, download the latest 5.0 firmware from the iOS Dev Center and place it in the same folder.
5.0b4 (3GS): iPhone2,1_5.0_9A5274d_Restore.ipsw

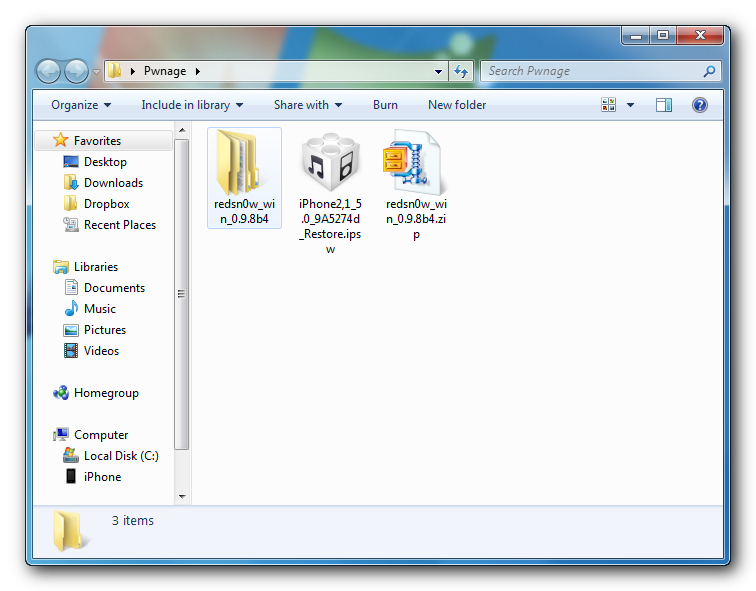

Extract the RedSn0w zip file into the same folder.
Connect your iPhone to the computer and launch iTunes.
Select your iPhone from the list of devices on the left. Now hold down Shift and click the Restore button. Restore is preferred as it won't create any wasted space on your iPhone.

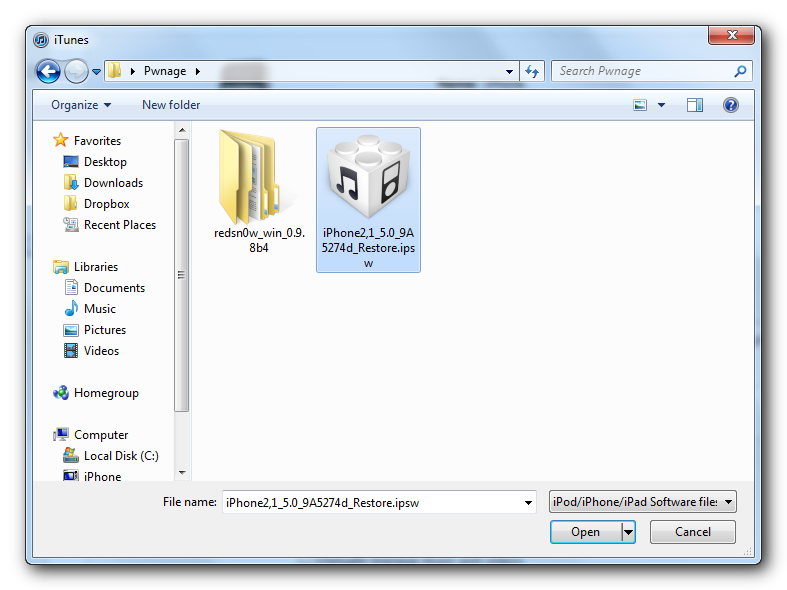

Navigate to the Pwnage folder on your desktop and select the 5.0 firmware ipsw. Click the Open button to continue.
Once iTunes has finished updating your iPhone to the desired firmware open the Pwnage folder on your desktop and launch the redsn0w application from the redsn0w folder we extracted earlier.
**Windows 7 users may need to run RedSn0w in Vista compatibility mode. You can do this by right clicking the executable and selecting Properties from the contextual menu

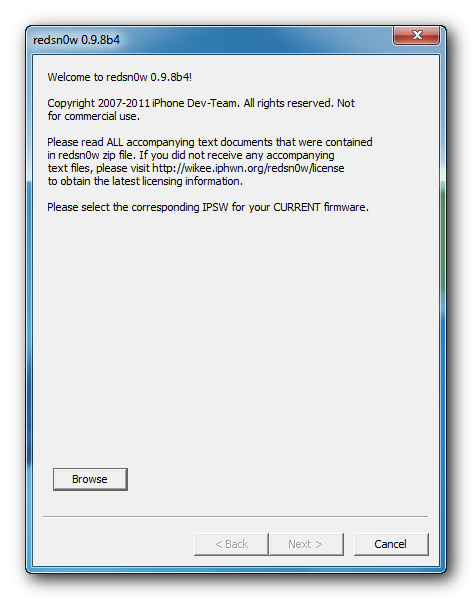

Once RedSn0w opens click the Browse button

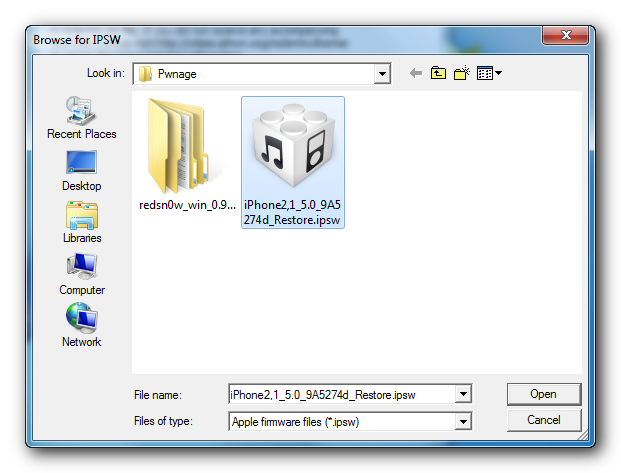

Select the 5.0 firmware ipsw we placed in the Pwnage folder on our desktop then click Open.

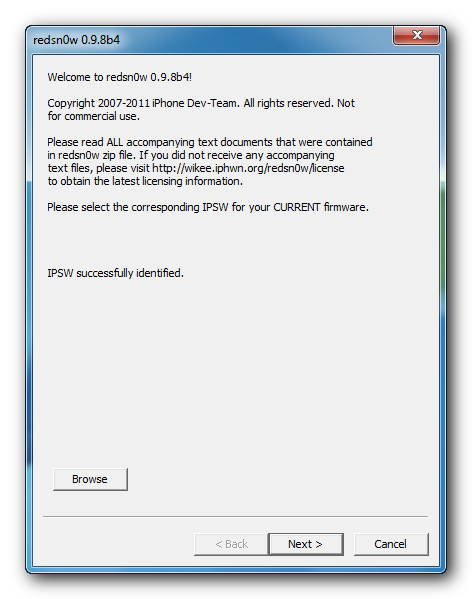

Once the firmware has been verified click the Next button to continue.

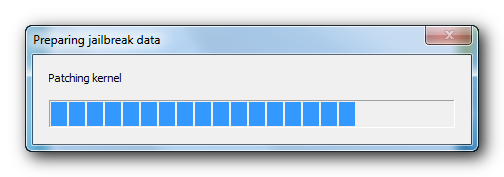

RedSn0w will now prepare the jailbreak data

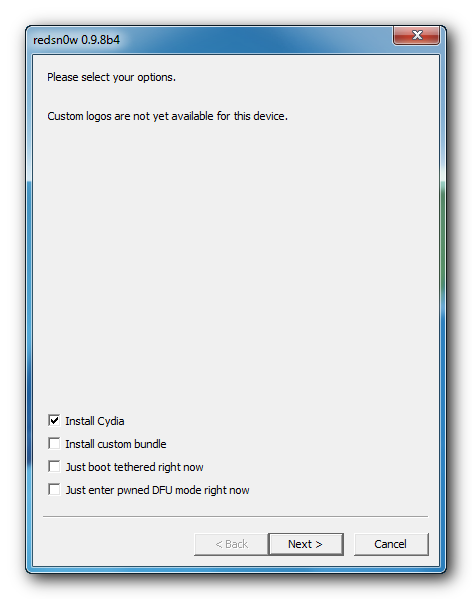

From this window you can select the jailbreak options you would like. Make sure Cydia is selected and click the Next button to continue

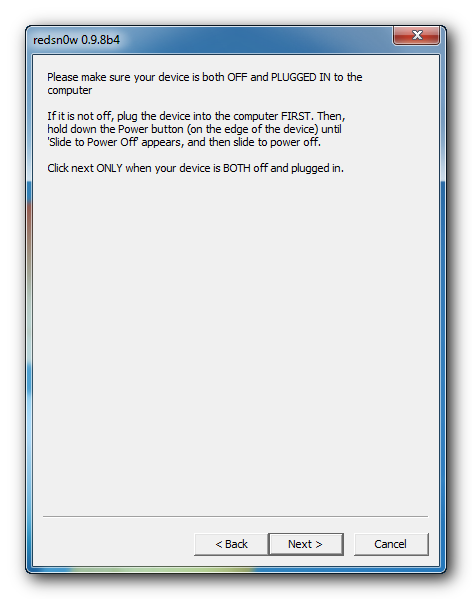

Please plug your iPhone into the computer and make sure its OFF then click the Next button

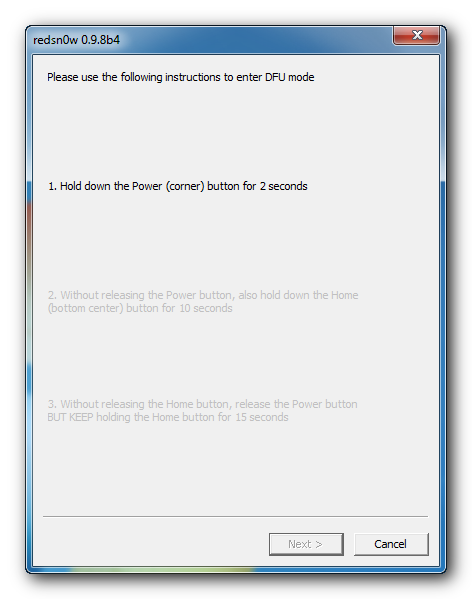

RedSn0w will now guide you through the steps to get into DFU mode. You can find more help with DFU mode here
Hold down both the Home button and the Power button for 10 seconds.
Release the Power button and continue holding the Home button until RedSn0w detects the device.

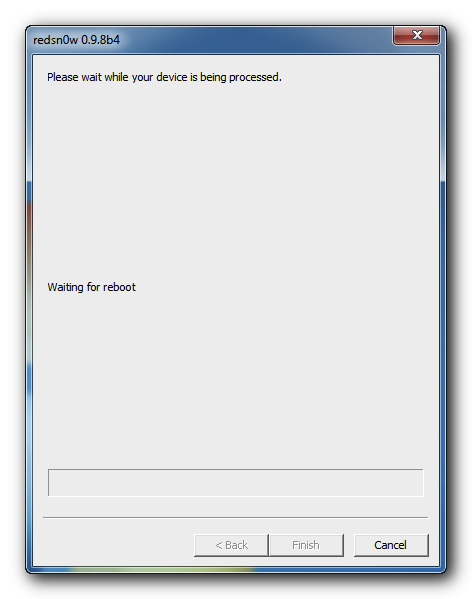

Your iPhone will now reboot

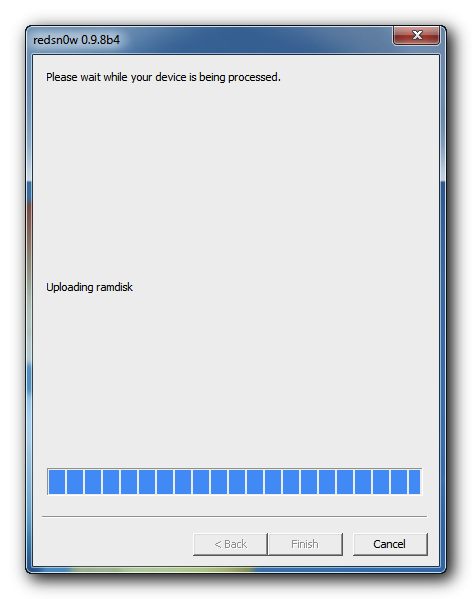

RedSn0w will then begin uploading the new RAM Disk and Kernel.

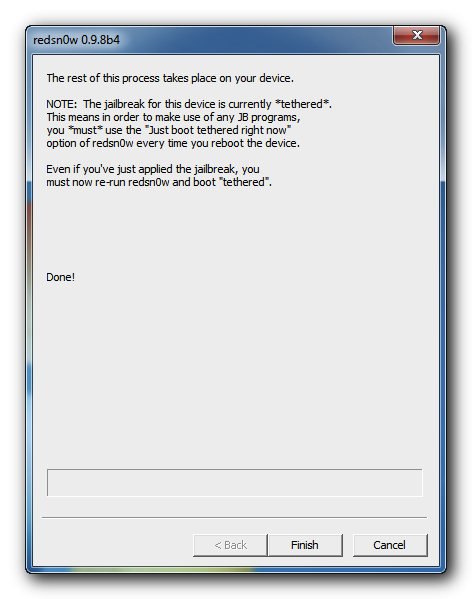

Once this is complete you will be notified that RedSn0w is done. Click the Finish button. When your iPhone finishes rebooting (5 minutes or so) it will be jailbroken with Cydia on the SpringBoard.

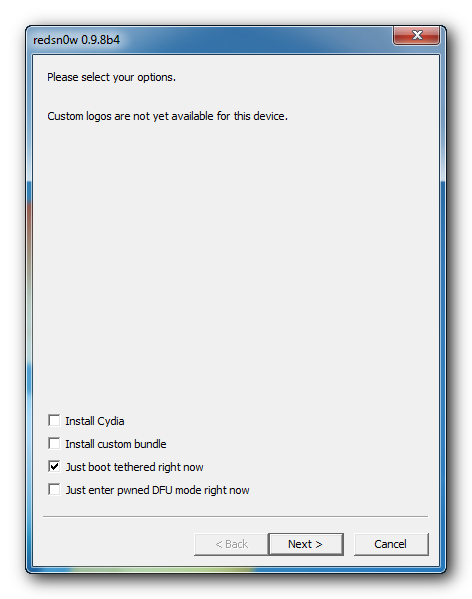

Since this is a tethered jailbreak you must use Redsn0w to help you boot back into your jailbroken device if its powered off for any reason. Simply connect your iPhone to the computer, launch RedSn0w, select Just boot tethered right now from the options window and click Next to have RedSn0w boot your device.
*As usual a big thanks to the iPhone Dev-Team for their hard work and contribution to the iPhone community.
**Windows 7 users can try running RedSn0w as an administrator in Windows Vista or XP compatibility mode if you experience any difficulties.
